DHD Series DTH Drilling Solutions: Maximizing Efficiency in Heavy-Duty Boring and Water Well Construction

In large-diameter drilling operations, maintaining a straight borehole through volatile, multi-layered geologies is a constant engineering challenge. For down-the-hole (DTH) applications requiring exceptional stability, high structural durability, and precise deviation control, the DHD Shank Series has long been the global benchmark.

At Bloom Machinery, our premium DHD series hammers and bits are engineered with optimized internal energy transfer and high-impact wear geometry. Below, we analyze three critical, high-stress application scenarios where the DHD series delivers maximum penetration rates and the lowest total cost-per-meter.

Scenario 1: Deep Water Well Drilling (Overcoming Deep Hydrostatic Pressure)

Deep water well drilling frequently requires penetrating hundreds of meters through alternating bands of soft clay, loose gravel, and hard bedrock water-bearing zones. As hole depth increases, the drill string must combat high back-pressure from underground water tables.

• The Operational Challenge: High hydrostatic counter-pressure forces water and fine sand back into the hammer, which can cause internal clogging, erratic piston striking, and rapid body washing (abrasive wear on the outer cylinder).

• The DHD Solution: Our [DHD360 DTH Hammers] feature an advanced check-valve system and engineered air-distribution geometry. This layout maintains a powerful, continuous blow even when submerged under high water heads. The heavy-walled piston and cylinder design ensure that maximum kinetic energy is directed downward, preventing the energy loss typical of lighter hammer profiles in deep holes.

• On-Site Benefit: Stable rotation, consistent cuttings evacuation under high water volume, and zero downhole failure during long continuous runs.

Scenario 2: Urban Foundation Piling & Anchoring (Ultimate Deviation Control)

In civil engineering, bridge construction, and urban infrastructure piling, holes must be drilled perfectly vertical to guarantee structural load integrity. These projects often encounter unpredictable boulder fields, sloped bedrock interfaces, or artificial backfill.

• The Operational Challenge: When a drill bit strikes a hard boulder or an inclined rock face at an angle, the lateral deflection forces can bend the drill string. This results in crooked holes, jammed casings, and catastrophic structural non-compliance.

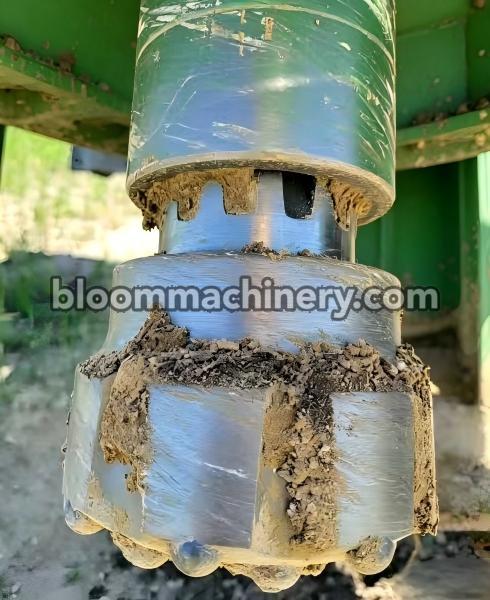

• The DHD Solution: Our [DHD360 DTH Bits] are configured with a specialized Concave (Inward Recessed) Face Design paired with heavy-gauge rows of premium YK05-grade tungsten carbide buttons. The concave profile acts as a natural centering guide, anchoring the bit face into the rock and absorbing lateral shockwaves before they can deflect the drill path.

• On-Site Benefit: Perfectly straight foundation piles, reduced stress on your drill rig's rotary head, and seamless casing installation through complex overburden.

Scenario 3: Open-Pit Quarrying & Hard Rock Production (Resisting Extreme Abrasion)

For limestone quarries, aggregate production, and open-pit mining, the primary operational metric is the Rate of Penetration (ROP) combined with extended tool life when constantly pounding highly abrasive rock like granite, quartzite, or hard caliche.

• The Operational Challenge: Continuous impact against high-compressive-strength rock causes severe thermal fatigue at the carbide tips and rapid steel matrix erosion between the buttons (known as "body retrogression"), leading to lost teeth and bit failure.

• The DHD Solution: Bloom Machinery utilizes high-purity structural alloy steel for our DHD bit bodies, coupled with a proprietary carburization heat-treatment process. This achieves an outer surface shell hardness of 58-62 HRC while preserving a shock-absorbing, resilient inner core. Combined with our double-gauge row button placement, the bit maintains its diameter profile over extended drilling intervals.

• On-Site Benefit: Fewer bit changes, significantly reduced downtime for re-sharpening, and predictable production scheduling.

Engineering Recommendations for DHD Fleet Configuration

To secure optimal performance from your DHD setup, always ensure your compressor output matches the requirements of the hammer. Running a DHD hammer below its recommended operating pressure (typically 10 to 25 Bar for high-pressure models) will result in poor cuttings clearance and accelerated secondary grinding wear on your bit faces.

Are you preparing for a demanding water well or foundation project? Explore our fully interchangeable, precision-matched [DHD Drilling Tools Category] to select the exact bit face style, button configuration, and hammer layout for your target geology.
