Hole Deflection in Foundation Piling: Causes and DTH Bit Solutions

In deep foundation piling, infrastructure construction, and micro-piling, hole deflection (hole deviation) is a costly site failure. When drilling through changing strata, boulders, or inclined rock faces, the DTH tool string can easily drift off its central axis.

A deflected hole means the steel reinforcement cages cannot be lowered, structural loads are compromised, and project timelines stall. Contractors wind up losing thousands of dollars backfilling and re-drilling.

Many drill crews assume deflection is just the result of a careless rig operator. However, as a hands-on production facility, we know that tool string stability and DTH bit face geometry play a massive role in keeping a hole perfectly straight.

1. Why the Bit Drifts: The Dynamics Down the Hole

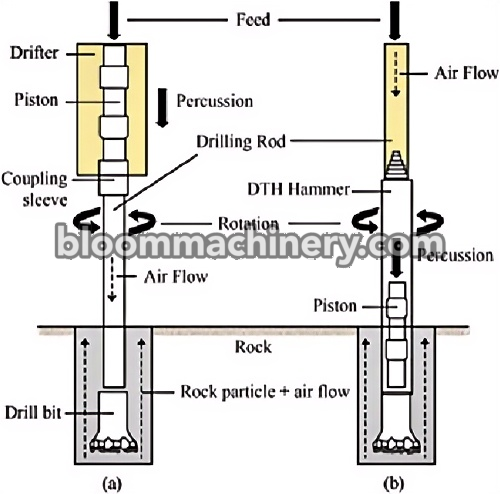

When a DTH bit passes from a soft clay layer into a hard granite boulder at an angle, the impact force distributes unevenly across the bit face. The tool naturally deflects toward the path of least resistance.

In these shifting formations, standard off-the-shelf bits fail to guide the tool string properly due to two main reasons:

• Incorrect Face Design: A face design that cannot center itself will glance off inclined rock faces instead of cutting directly into them.

• Loose Gauge Tolerances: If the outer diameter (OD) of the bit body wears down too quickly, it creates excessive clearance between the tool and the hole wall, allowing the hammer setup to wobble.

At Bloom Machinery, we build our DHD340-115mm (ideal for tie-back anchors and micro-piles) and Mission60-165mm (engineered for heavy foundation work) to act as natural stabilizers down the hole.

2. The Shop-Floor Solution: Engineering Straight Holes

To counter deflection, our factory focuses heavily on structural rigidity and face stabilization across our entire production line:

• Concave & Flat Face Calibration: For piling projects in broken ground, we recommend a Flat Face layout for maximum structural strength, or a Concave Face design. The concave layout acts as a pilot bowl, forcing the cuttings toward the center and keeping the bit locked on a straight axis even when hitting sloped boulders.

• Heavy Gauge Precision: We use multi-axis Japanese Mazak CNC centers to machine our bit profiles. By holding a strict tolerance window of plus or minus 0.005mm, we ensure that the outer gauge row of virgin tungsten carbide buttons provides constant, uniform contact with the hole wall. This prevents the tool head from tilting under high rotation speeds.

• High-Yield Forgings: Using premium Timken/Sanyo nickel-alloy steel ensures that the bit head maintains its precise shape under constant high-pressure pounding (over 25 bar). It resists the micro-twisting that alters cutting angles mid-hole.

Our Foundation Formula: Stabilized Face Profile + Tight Gauge Tolerances + Rigid Tool Assembly = Straight Piles

This prevents the tool head from tilting under high rotation speeds. For a deeper look at how we control these tolerances to eliminate other high-load failures like button drop-outs, read our analysis on DHD360 Button Control Standards.

3. Real-World Adjustment: It's a System Balance

Even the best bit cannot stay perfectly straight if the rest of the drill string behaves like a wet noodle. If your pile holes are drifting, we don't recommend simply pushing harder on the rig controls. Let’s look at your system mechanics together:

• Check Drill Pipe Wall Thickness: In deep foundation work, using thin-walled trading tubes saves money upfront but introduces structural flex. For tough piling, matching our DHD340 or Mission60 bits with high-rigidity, thick-walled drill pipes provides the mechanical backbone needed to resist bending.

• Manage Weight-on-Bit (WOB): Excessive pull-down force actually worsens deflection by bowing the drill rod string inside the hole. Lowering the force slightly and allowing the high-pressure hammer impact to do the cutting keeps the tool path true.




Quick Site Matching Profile for Piling Contractors

• Ground Condition: Soft Overburden with Hard Intermittent Boulders

• Site Challenge: Extreme bit wandering; risk of getting stuck under boulders.

• Our Recommended Approach: Flat Face or Concave Mission60-165mm setup with heavy gauge protection.

• Expected Result: Smooth boulder penetration with minimal deviation.

• Ground Condition: Deep Anchor Drilling / Micro-Piling in Fractured Strata

• Site Challenge: Hole walls collapsing; bit drifting off-axis.

• Our Recommended Approach: Let's talk. We often recommend our DHD340-115mm paired with thick-walled guide tubes.

• Expected Result: Uniform hole diameters and perfect vertical alignment for tension anchors.




If your site is dealing with solid, non-fractured granite rather than shifting strata, you can review our technical guide on Maximizing DHD360 Drilling Efficiency in Hard Granite.

4. Work with a Manufacturer Who Understands the Field

Bloom Machinery doesn't just cut steel threads and drop boxes in the mail. We run a mid-sized production facility built around manufacturing discipline and engineering conversation.

If your current project is losing money due to hole deviation, or if you want to discuss the best face and spline configuration (DHD or Mission) for your upcoming piling contract, get in touch with our team. Send over your geological profile, and let's configure a package that delivers true holes and solid margins.
